Function

-Global positioning
-Real-time monitoring
-Vehicle locating
-Timing tracking
-location history report





GPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle.
The product fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.

Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satellite global position system, track by several ways. provide monitor software and global map. real-time track through the monitor software in your pc; track through your PDA cell phone and googleearth.

Features and functions
1. Small cubage,dimension:80mm*65mm*25mm,weight:133g,easy to hide.
2. Support orientation without orientated server: it can find out Real-time longitude and latitude, time and speed. By using public map software and  entering longitude and latitude manually, you can find out the real-time information of position.
3. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
4. Get location in real street/address name
5. Remote Engine-stop and Resume
6. Check the vehicle status
7. tracking function by timing and frequency
8. Remote reset by sms & reset button on the device
9. Input Power: 9V-24V DC
10. GSM/GPS LED indicator
11. Authorized number added and deleted function
12. Support hidden alarm and monitor function

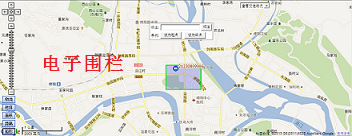

13. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
14. Power supply disconnection alarm.
15. ACC alarm
16. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
17. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
18. Low battery alarm function







Applying directions
Vehicle fleet/logistics/Vehicle rental

Technology parameter
1. GPS chip: SIRF3chip
2. GPS sensitivity:   -159dBm
3. GPS accuracy :5m
4. Time To First Fix   Cold status 45s,Warm status 35s,Hot status 1s

4 tracking solutions
1. SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
2. Get absolute address by SMS
3. Web server online tracking

Package Contents
 GPS Car Tracker
 GPS Antenna
 GSM Antenna
 Microphone
 Relay
 Wiring
 English Manual





HOW IT WORKS

Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its

Location thru a SMS message. You can then use these coordinates on any mapping software (for example Google earth)

Which will show where exactly the unit is located.

With some little setup, you can also have the device to send the data directly to a computer thru GPRS and display its

Location on a map with our bundled software for real-time location tracking.

Track via SMS on your phone:

Get one SMS including: Lat/lon, speed, time remaining battery power and a link by clicking which you will be leaded to a Google Map on your phone screen, you can clearly see where your tracking target is.

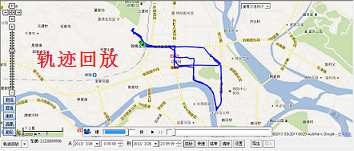

Track on Google Earth:

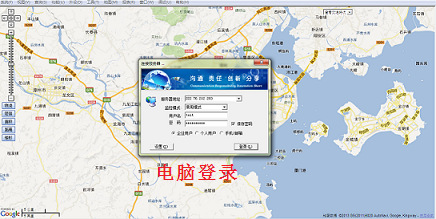

Track on our online tracking website:







FAQs Need your HIGH attention:

1. Q: If this tracker can work without a simcard?

A: This tracker is a combination of current GSM network and GPS positioning. A suitable simcard is a FIRST NECESSITY to make it work. These 2 CANNOT work seperately.

2. Q: Where can I find a Suitable simcard to make it work?

A: As mentioned above, a suitable simcard is required to make it work. But when you choose the simcard, you need to be CAREFUL in order not to waste money. The simcard should be a GSM network based (ONLY GSM). The tracker now CANNOT support 3G in theory. Why in theory? According to our selling experience, in some countries such as AU, US, UK, etc, there are ONLY 3G simcard can be found now. But the tracker CAN still perform normally with such 3G simcard, that is because these 3G simcard can support or compatible with a lower generation like 2G or 2.5G, which is enough to make the tracker work. When you choose the simcard, PLEASE DO CONFIRM this with your local simcard provider.

3. Q: If your trackers are FAKE or CLONE ones?

A: First, lets say NO to confidence both of you and us. We have our OWN production line and Tracking system. If we are selling fake or clone ones, we should have been prohibited from selling earlier. There are several GPS tracker manufacturers here in China. We will NEVER send emails worldwide to say only trackers we are selling are REAL ones. Because on this question, buyers will make their final judgment. What you will get from us wont be just a simple transaction BUT should be professional technical support and final pleasant using experience. We have been trying to improve all the time just because we regard all your things as them of ourselves. So we need your trust and a firm support

4. Q: I CANNOT make it work. Both the tracker and user manual are complicated

A: The tracker comes with a certain technology, but it is a little far away from being told as complicated. About the user manual, it illustrates very detailed on each function, EVEN each correct command you should edit to send to tracker. You just need to spend some little patience reading it over. The user manual will NOT ONLY helps you get familiar with the tracker, BUT ALSO will help you do a CORRECT operation. We are quite sure and very pleased to offer you technical support for any problem, BUT as long as you refer to use manual carefully, you must make it work in perfect condition TOTALLY by yourself. You will enjoy this feeling.
