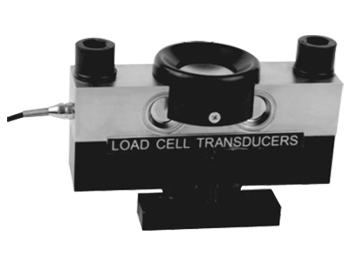

BTA-50t稱重傳感器、BTA-50t橋式傳感器
產品簡介INTRODUCTION：
雙剪切梁式；優質合金鋼材質；高精度；高穩定性；通過CMC認證；安裝簡便、快速；表層鍍鎳防腐處理；適用于汽車衡、地磅、軌道衡和料斗秤等
主要特點Features:
雙剪切梁式 Double ended shear beam load cell
優質合金鋼材質 Senior alloy steel
高精度 High accuracy
高穩定性 High stability
通過CMC認證 CMC, Approved
安裝簡便、快速 Easy to install
表層鍍鎳防腐處理 Protected against corrosion by nickelplated treatment
適用于汽車衡、軌道衡和料斗秤等 Suitable for truck scales, rail scales, bin and hopper scales
量程Capacities:
BTA-50t
技術參數Specification:
|
額定輸出
|
Rated Output
|
2.0mV/V ±0.002%
|
|
精度等級
|
Accuracy class
|
C2～C5
|
|
綜合誤差
|
Total error
|
±0.03% of rated output
|
|
零點平衡
|
Zero Balance
|
±1% of rated output
|
|
蠕變
|
Creep after 30 minutes
|
±0.03% of rated output
|
|
非線性
|
Nonlinearity
|
±0.03% of rated output
|
|
滯后
|
Hysteresis
|
±0.03% of rated output
|
|
重復性
|
Repeatability
|
±0.03% of rated output
|
|
靈敏度溫漂
|
Temp. effect on output
|
≤0.002% of applied output/ºC
|
|
零點溫漂
|
Temp. effect on zero
|
≤0.002% of rated output/ºC
|
|
可用溫度范圍
|
Safe Temp. Range
|
-10ºC to + 70ºC
|
|
溫度補償范圍
|
Temp. Compensated
|
-10ºC to + 40ºC
|
|
安全載荷
|
Safe Overload
|
150%
|
|
輸入阻抗
|
Input Impedance
|
750 ohm ± 10 ohm
|
|
輸出阻抗
|
Output Impedance
|
703 ohm ± 5 ohm
|
|
絕緣阻抗
|
Insulation Resistance
|
≥5000 M ohm (50V DC)
|
|
推薦激勵電壓
|
Rated Excitation
|
10V DC/AC
|
|
最大激勵電壓
|
Maximum Excitation
|
15V DC/AC
|
|
導線長度
|
Cable Length
|
16m
|
|
導線顏色
|
Cable Color Code
|
Red(+E) Black(-E) Green(+S) White(-S)
|
注:BTA-50t稱重傳感器，可選數字輸出(BTA-D-50t)，
